myTankLinker: Auto Edition
– Automatic Tank Monitoring with Auto Pump Control
Smart ON/OFF Pump Control with Memory Retention & High-Efficiency Sensors
SKU: SMEPRO0002
MPN: MTL-AUTO-V1
₹ 1999.00
Smart pump controller for overhead tanks. Offers auto ON/OFF control, LED tank indicators, memory retention, and high-efficiency sensor-based level detection.
Product Description:

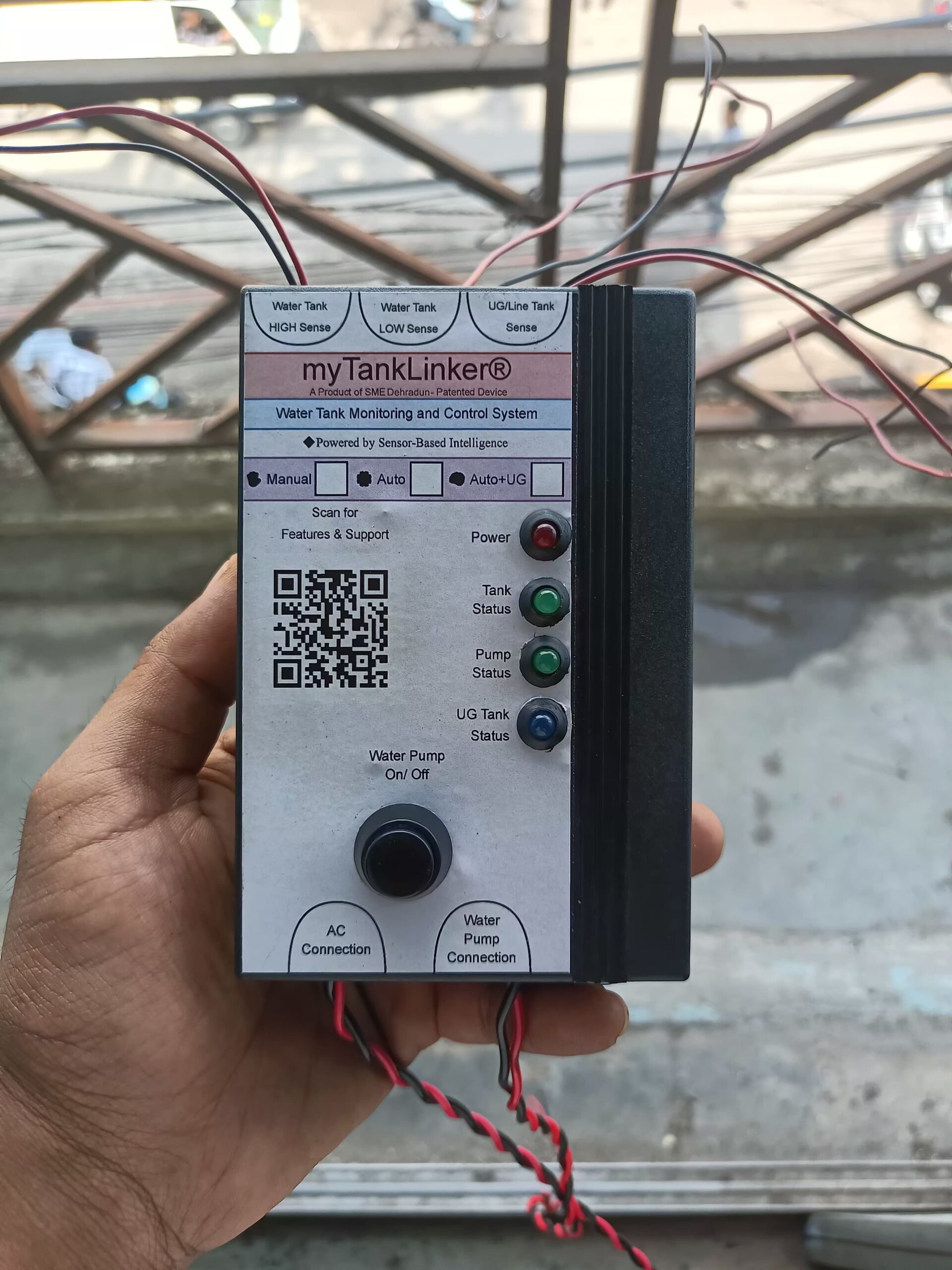

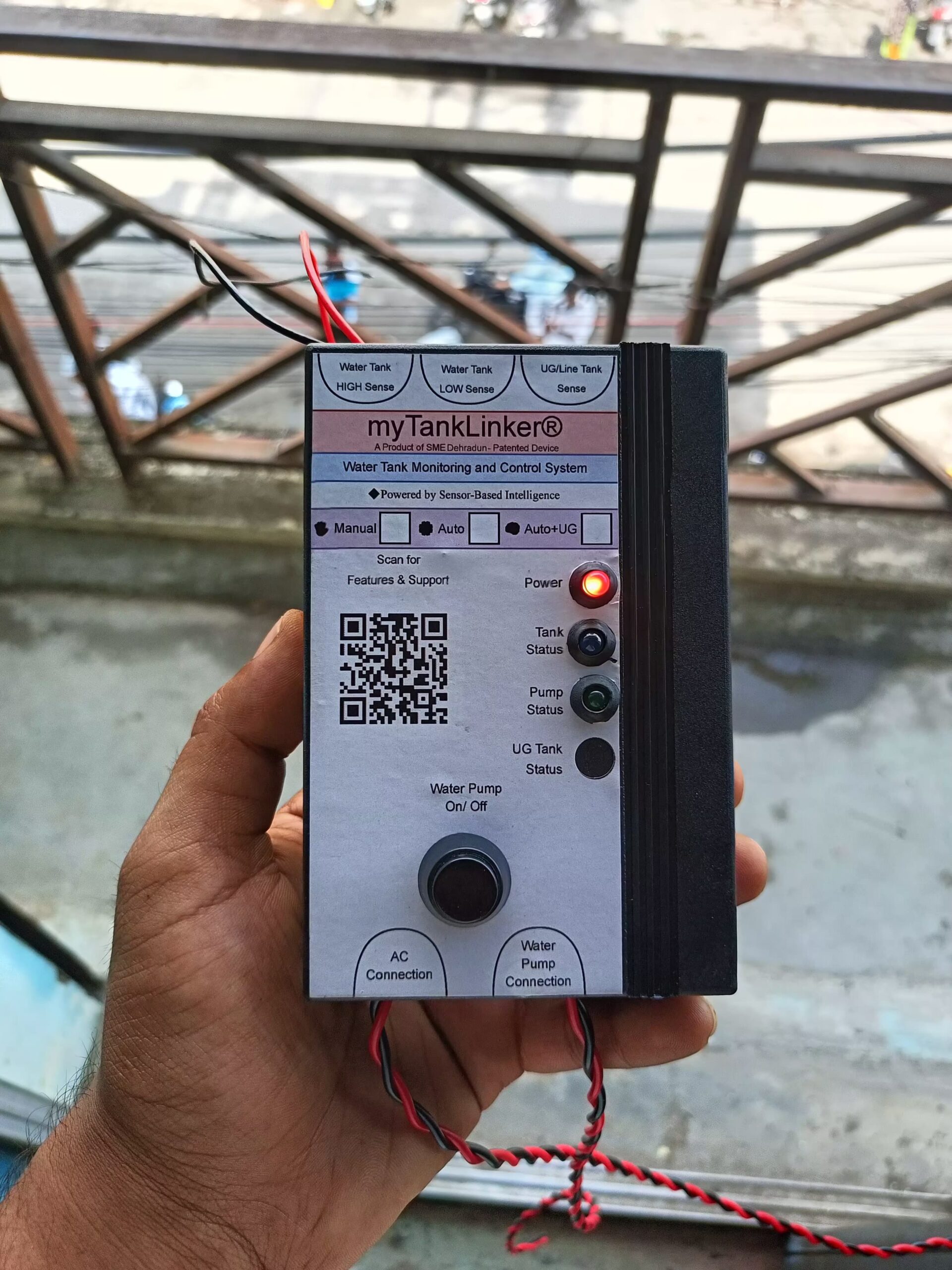

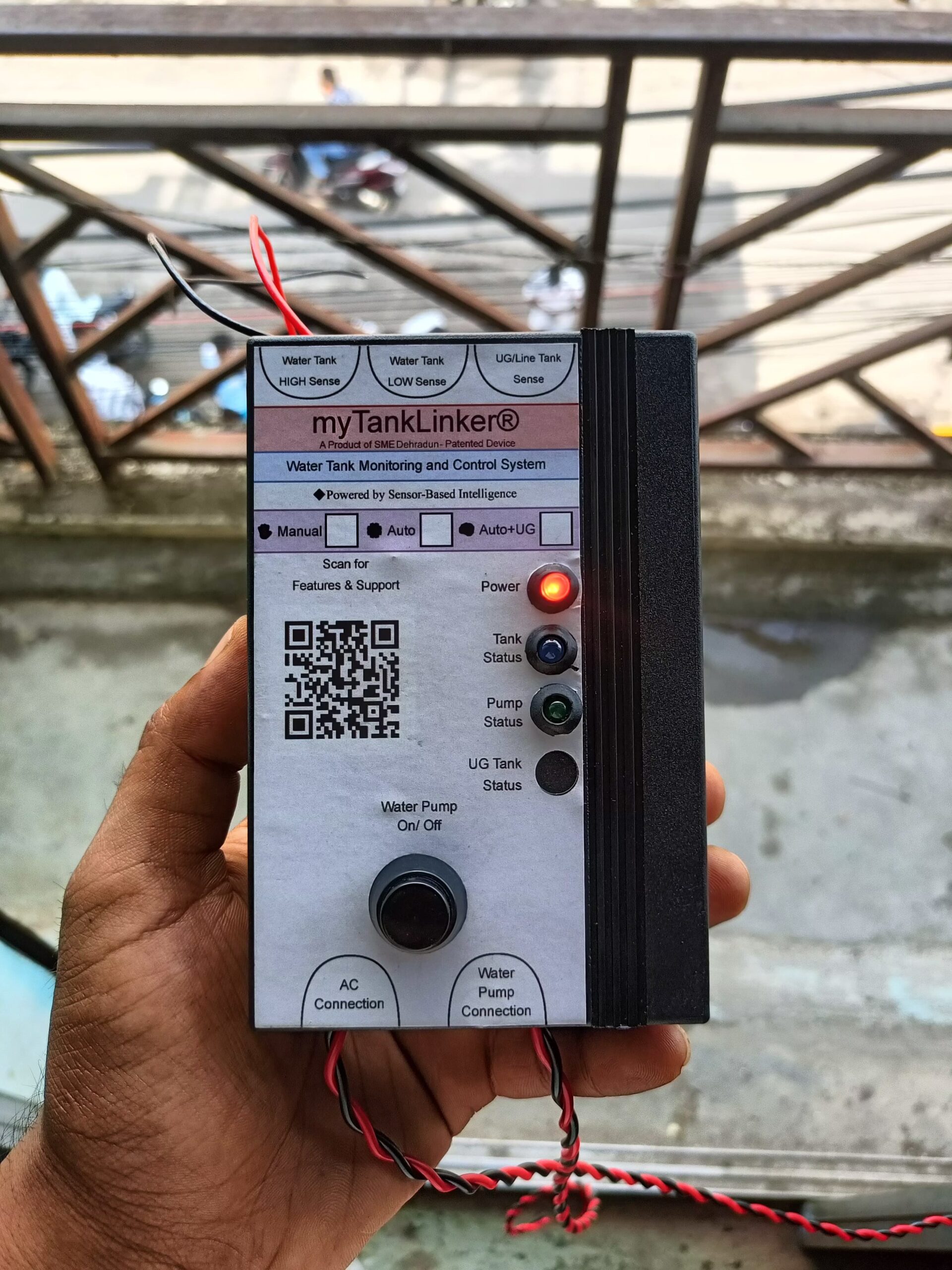

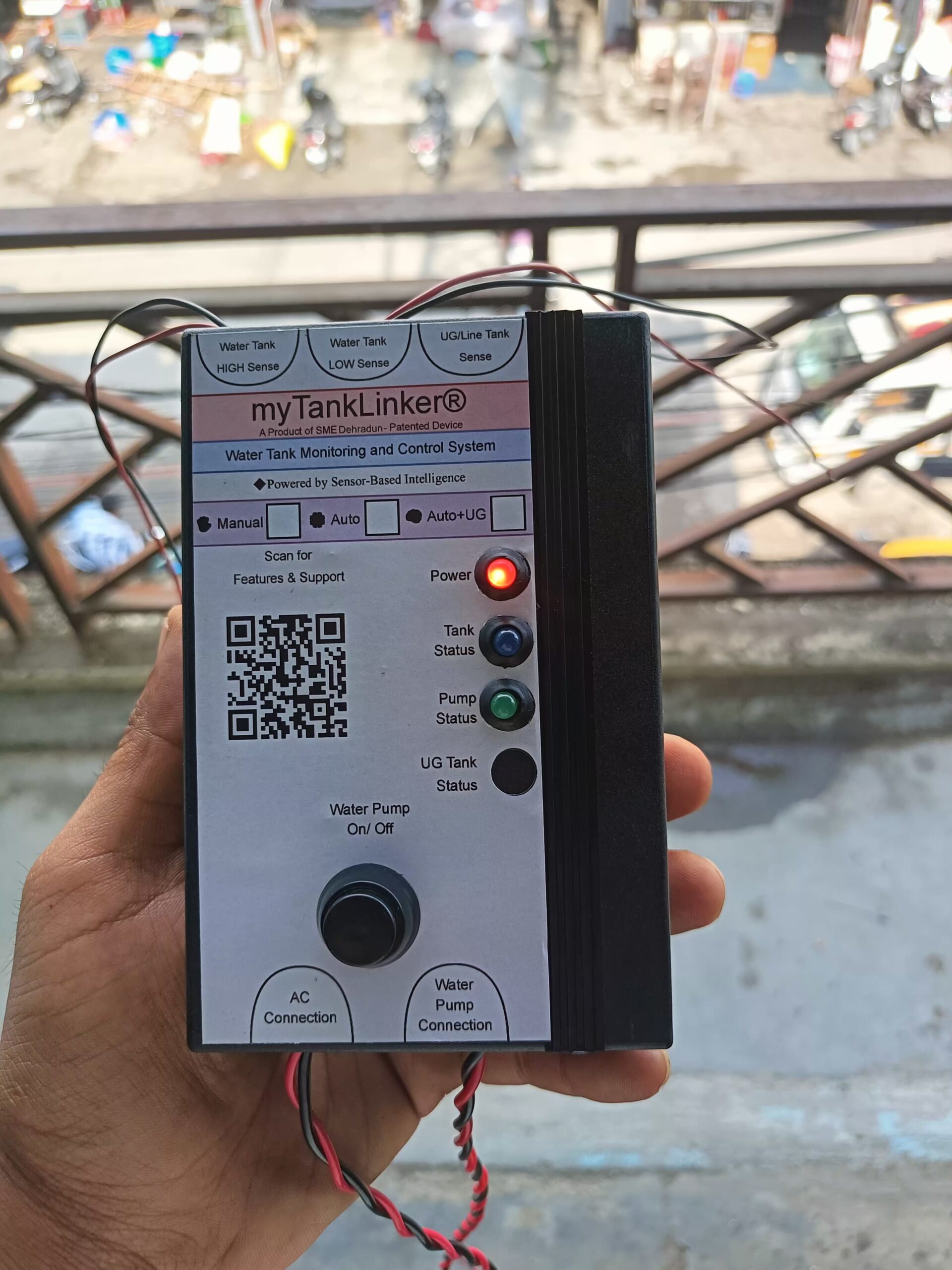

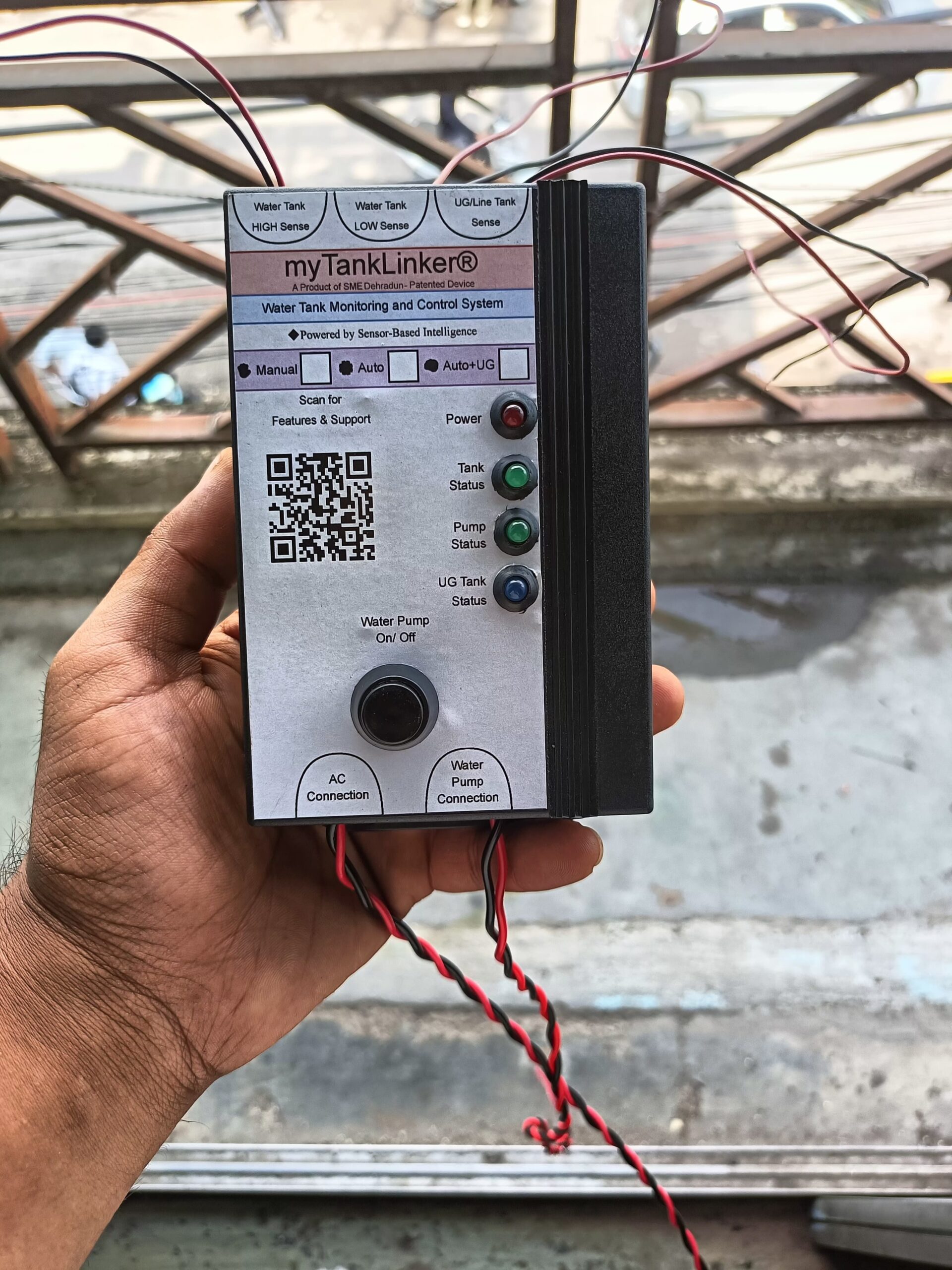

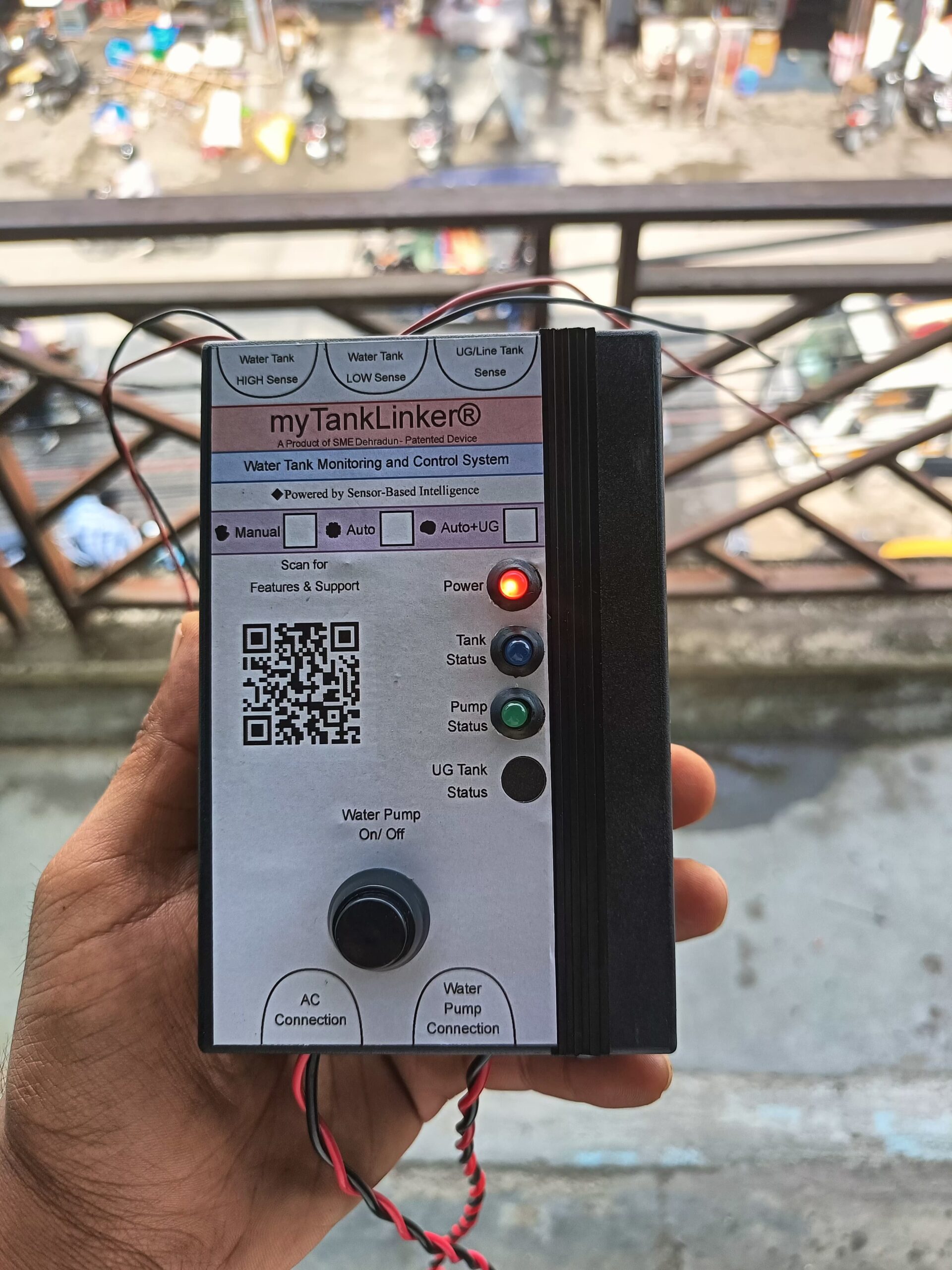

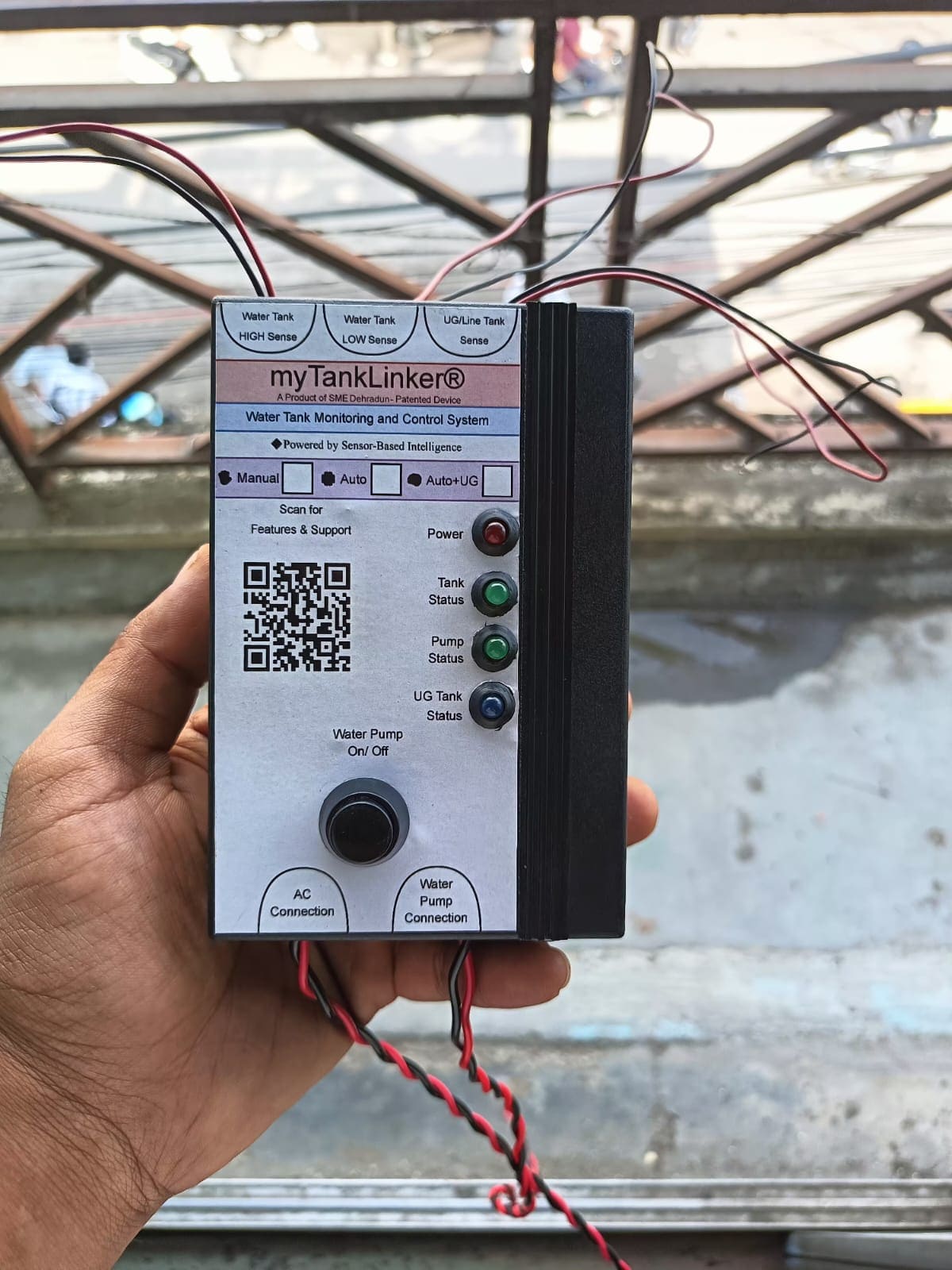

myTankLinker: Auto Edition is an intelligent water pump controller that automatically manages your pump based on the water level in the tank. It starts the pump when the water level is low and stops it when the tank is full, ensuring complete automation.
The system features dual high-efficiency sensors that provide accurate readings and eliminate overflow or dry-run risks. It also offers manual override with safety interlocking logic that prevents accidental pump misuse during unsafe conditions.
LED indicators give clear feedback on tank levels, and the built-in EEPROM memory stores the pump’s last state, even after a power outage. With robust control logic and sensor validation, this model is ideal for hassle-free overhead tank automation.
Key Features:
- ⚙️ Automatic Pump Control: Automatically switches pump ON/OFF based on tank levels
- 🔁 Manual Override with Safety Logic: Allows safe manual operation only when conditions are right
- 🔆 LED Indicators: Visual display of tank status for quick monitoring
- 💾 EEPROM Memory: Retains last pump state after power failure
- ⚠️ Conflict Detection: Prevents unpredictable pump behavior during sensor issues
- 🔄 Long-Press Reset: Allows full system reset and memory clearing
- ⚡ High-Efficiency Sensors: Durable, accurate, and resistant to corrosion or false triggers
Additional Information
In the Box | 1x myTankLinker Unit, 1x User Manual |
Power Supply | 230V AC, 50-60Hz |
Application | Overhead Tanks |
Material / Enclosure | ABS Plastic or PVC (mention what you use) |
Control Type | Manual / Automatic |
Installation Type | Wall-Mountable |
Dimensions | 150 mm × 85 mm × 40 mm (15.0 cm × 8.5 cm × 4.0 cm) |
Supported Pump Capacity | Up to 1.5 HP (230V AC Submersible Pump) |
Warranty | 6 Month Warranty |
Manufacturer / Brand | Schematics Microelectronics |
Country of Origin | India |
